Ever wondered how machines handle heavy loads with precision? Tapered roller bearings are the answer. These bearings are crucial in machinery and industrial applications, offering durability and efficiency. In this post, you'll learn about their structure, advantages, and applications, providing insights into their key features and benefits.
Understanding the Structure of Tapered Roller Bearings

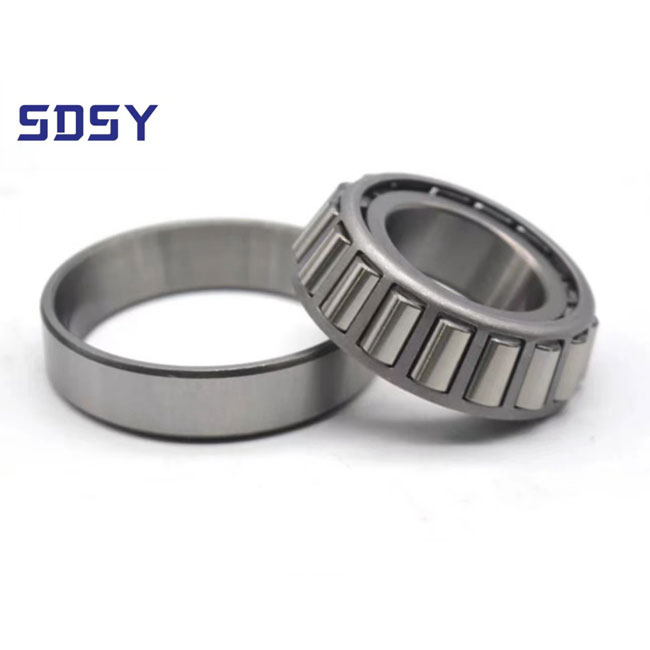

Components - Cone, Cup, Rollers, and Cage
Tapered roller bearings consist of four main parts working together to handle loads smoothly:
Cone (Inner Ring): This is the inner raceway where the rollers ride. It includes the rollers and the cage as one assembly.
Cup (Outer Ring): The outer raceway that houses the cone assembly.
Rollers: These are tapered cylindrical rollers arranged around the cone. Their tapered shape matches the cone and cup angles, allowing for smooth rolling.
Cage: Also called a retainer, it spaces the rollers evenly and keeps them aligned, preventing contact between rollers.
The cone and cup have raceways shaped like segments of cones. The rollers' axes align so that if extended, they meet at a single point on the bearing’s central axis. This alignment ensures the rollers roll without sliding, reducing wear and heat.
Tapered Geometry and its Role in Load Distribution
The unique tapered shape is key to the bearing's ability to handle loads efficiently. Unlike cylindrical rollers, tapered rollers contact the raceways along a line, not a point. This line contact spreads the load over a larger area, reducing stress.
This geometry allows tapered roller bearings to support both radial loads (perpendicular to the shaft) and axial loads (along the shaft axis) simultaneously. The taper angle controls the balance between these loads — a steeper angle increases axial load capacity.
Because the rollers, cone, and cup all share a common apex point, the bearing maintains proper alignment during operation. This reduces friction and heat generation, improving bearing life and performance.
Differences from Other Roller Bearings
Tapered roller bearings differ from other roller types mainly in shape and load handling:
Cylindrical Roller Bearings: Use straight rollers, ideal for high radial loads but limited axial load capacity. They lack the tapered geometry, so they can’t handle thrust loads effectively.
Spherical Roller Bearings: Have barrel-shaped rollers that accommodate misalignment and heavy radial loads but less axial load capacity compared to tapered rollers.
Needle Roller Bearings: Feature very thin rollers for compact radial load support but poor axial load capacity.
Tapered roller bearings stand out by combining high radial and axial load capacity. They require precise alignment; misalignment can cause damage. Their design also allows adjustment of internal clearance during installation, optimizing performance.
Tip: When selecting tapered roller bearings, ensure the cone, cup, and rollers’ taper angles match precisely to maximize load distribution and minimize friction.
Advantages of Tapered Roller Bearings
High Load Capacity
Tapered roller bearings excel in handling heavy loads. Their unique design spreads forces over a large contact area, allowing them to support significant radial and axial loads simultaneously. The tapered shape of the rollers and raceways means they can carry more weight than many other bearing types of similar size. This makes them ideal for applications where durability and strength are critical, such as in automotive wheel hubs or heavy machinery.
Efficient Handling of Radial and Axial Loads
One of the standout features of tapered roller bearings is their ability to manage both radial (perpendicular to the shaft) and axial (along the shaft) loads effectively. The tapered geometry aligns the rollers so that forces are evenly distributed. This means they can handle complex load combinations without compromising performance. For example, in vehicle wheels, the bearing must support the car's weight (radial load) and the forces generated during turning or acceleration (axial load). Tapered roller bearings manage these loads efficiently, ensuring smooth operation and longevity.
Reduced Friction and Heat Generation
Due to their precise tapered geometry, these bearings roll smoothly with minimal sliding between the rollers and raceways. This rolling motion reduces friction, which in turn lowers heat buildup during operation. Less heat means less wear and longer bearing life. Additionally, reduced friction improves energy efficiency in machinery, helping to lower operational costs. Proper lubrication enhances these benefits further, maintaining smooth rotation and preventing premature failure.
Tip: Regularly check and maintain correct bearing preload during installation to optimize load handling and minimize friction in tapered roller bearings.
Applications of Tapered Roller Bearings
Automotive Industry - Wheel Hubs and Transmissions
Tapered roller bearings play a crucial role in the automotive industry, especially in wheel hubs and transmissions. In wheel hubs, they handle the vehicle's weight (radial load) and forces generated during cornering or acceleration (axial load). Their ability to manage combined loads ensures smooth rotation and vehicle stability. In transmissions, these bearings support shafts that experience both radial and thrust loads, maintaining precise gear alignment and efficient power transfer. Their durability and load capacity make them ideal for vehicles ranging from passenger cars to heavy trucks.
Aerospace - Landing Gear and Other Components
In aerospace, tapered roller bearings are essential for landing gear assemblies and other critical components. Landing gear must withstand heavy impact loads during takeoff, landing, and taxiing. These bearings accommodate complex load combinations and provide reliable performance under extreme conditions, including temperature fluctuations and vibrations. Their precision design helps maintain aircraft safety and operational efficiency. Beyond landing gear, tapered roller bearings also find use in aerospace gearboxes and control systems, where load handling and reliability are vital.
Heavy Machinery and Construction Equipment
Heavy machinery and construction equipment rely heavily on tapered roller bearings for robust performance. Machines like excavators, loaders, and cranes face substantial radial and axial loads during operation. Tapered roller bearings support these loads while reducing friction and heat, improving machine longevity and uptime. Their rugged design suits harsh environments, including exposure to dust, dirt, and heavy shocks. In some cases, multiple rows of tapered rollers are combined to increase load capacity even further, meeting the demands of heavy-duty applications.
Tip: When selecting tapered roller bearings for your application, consider the specific load types and environmental conditions to ensure optimal performance and durability.
Comparing Tapered Roller Bearings with Other Bearings
Cylindrical Roller Bearings vs. Tapered Roller Bearings
Cylindrical roller bearings feature straight, cylindrical rollers. They excel at carrying heavy radial loads — forces acting perpendicular to the shaft’s axis. However, they offer limited capacity for axial loads, which act along the shaft’s length. Because of their design, cylindrical rollers contact raceways over a line parallel to the shaft, making them great for pure radial load applications.
Tapered roller bearings, on the other hand, have conical rollers and raceways. This tapered geometry lets them handle both radial and axial loads simultaneously. The rollers align so their axes converge at a common point, ensuring smooth rolling and reduced sliding friction. This design allows tapered bearings to support thrust loads far better than cylindrical ones.
Another difference lies in adjustability. Tapered bearings allow preload or clearance adjustments during installation, optimizing performance for specific load conditions. Cylindrical bearings usually have fixed clearances, limiting this flexibility.
In terms of applications, cylindrical bearings often appear in electric motors, machine tools, and conveyors where radial loads dominate. Tapered bearings suit automotive wheel hubs, transmissions, and heavy equipment where combined loads occur.
Spherical Roller Bearings vs. Tapered Roller Bearings
Spherical roller bearings have barrel-shaped rollers and self-aligning raceways. This design lets them tolerate shaft misalignment and shaft deflection better than tapered bearings. They primarily handle heavy radial loads but can also carry moderate axial loads in both directions.
Tapered roller bearings provide superior axial load capacity compared to spherical bearings. However, they require precise alignment; misalignment causes uneven wear and damage. Spherical bearings are more forgiving in harsh conditions where perfect alignment is tough.
Spherical bearings generate slightly more friction due to roller shape but excel in applications with vibration or shaft deflection. Tapered bearings offer lower friction and heat generation when properly aligned.
Choosing between these depends on load type and operating conditions. For combined radial and axial loads with good alignment, tapered bearings often outperform. For heavy radial loads with misalignment or shock, spherical bearings may be better.
Choosing the Right Bearing for Your Needs
Selecting the right bearing depends on your application’s load types, alignment conditions, speed, and environment.
Load Types: If your system experiences both radial and axial loads, tapered roller bearings are ideal. For mainly radial loads, cylindrical or spherical bearings may suffice.
Alignment: If shaft misalignment or deflection is expected, spherical roller bearings offer more tolerance. Tapered bearings require precise alignment.
Speed: Cylindrical bearings generally handle higher speeds better. Tapered bearings suit moderate speeds but can handle heavy loads.
Maintenance and Adjustment: Tapered bearings allow preload adjustment, which can improve performance but requires careful installation.
Environment: Consider contamination, temperature, and shock loads. Spherical bearings handle shocks and misalignment better.
In many cases, consulting with bearing manufacturers or experts helps match bearing choice to your machinery’s specific demands. Proper selection ensures longer service life, reduced downtime, and efficient operation.
Tip: When deciding between tapered and other roller bearings, carefully evaluate load direction, alignment tolerance, and speed requirements to ensure optimal bearing performance and longevity.
Maintenance and Repair of Tapered Roller Bearings
Importance of Regular Maintenance
Regular maintenance plays a crucial role in ensuring tapered roller bearings perform reliably and last longer. These bearings operate under combined radial and axial loads, making them susceptible to wear if not properly cared for. Maintenance helps detect early signs of damage, contamination, or lubrication failure before they cause costly downtime or catastrophic failure.
Key maintenance tasks include:
Lubrication: Proper and timely lubrication reduces friction and heat, preventing premature wear and corrosion. Use the recommended lubricant type and replenish or replace it according to operating conditions.
Inspection: Routine visual and physical inspections help identify cracks, spalling, or discoloration caused by overheating.
Cleaning: Removing dirt, dust, and debris prevents contamination that can degrade bearing surfaces.
Alignment Checks: Ensuring correct shaft and housing alignment prevents uneven load distribution and early bearing failure.
Scheduling regular maintenance based on manufacturer guidelines and operating environment is essential. In harsh or heavy-load applications, more frequent checks may be necessary.
Common Issues and Solutions
Tapered roller bearings can face several common issues during operation. Understanding these problems and their remedies helps reduce downtime and repair costs.
Lubrication Failure: Insufficient or contaminated lubricant leads to increased friction and heat. Solution: Apply correct lubricant type and quantity; use seals to prevent contamination.
Misalignment: Causes uneven roller loading and accelerated wear. Solution: Adjust shaft and housing alignment; use precision mounting techniques.
Contamination: Dirt, moisture, or debris entering the bearing causes corrosion and surface damage. Solution: Use proper seals and maintain a clean environment.
Overloading: Excessive radial or axial loads cause deformation or brinelling. Solution: Select bearings rated for expected loads; avoid shock loads.
Fatigue and Wear: Over time, repeated stress leads to cracks or spalling. Solution: Replace bearings promptly; monitor operating conditions to extend life.
Prompt identification and correction of these issues keep machinery running smoothly and avoid costly breakdowns.
Bearing Repair Services
Professional bearing repair services offer valuable support in maintaining and restoring tapered roller bearings. They provide:
Inspection and Diagnostics: Expert evaluation of bearing condition using advanced tools like vibration analysis and microscopy.
Cleaning and Re-lubrication: Thorough removal of contaminants and replenishment with high-quality lubricants.
Reconditioning: Repair of minor surface defects, polishing raceways, and replacing damaged components like cages or rollers.
Customization: Modifications or upgrades tailored to specific application requirements.
Emergency Support: Rapid turnaround reduces downtime in critical operations.
Engaging trusted repair providers extends bearing life, lowers replacement costs, and improves overall machinery reliability. Always choose certified specialists familiar with tapered roller bearing technology and industry standards.
Tip: Establish a proactive maintenance schedule including lubrication checks, alignment verification, and contamination control to maximize tapered roller bearing lifespan and performance.
Industry Standards and Compliance
ISO Standards for Tapered Roller Bearings
International Organization for Standardization (ISO) sets globally recognized standards for tapered roller bearings. These standards ensure consistent quality, interchangeability, and performance across manufacturers and industries. Key ISO standards include:
ISO 355: Specifies dimensions, tolerances, and boundary dimensions for tapered roller bearings. It helps designers and engineers select bearings that fit precisely into their machinery.
ISO 10317: Defines the designation system for tapered roller bearings, standardizing how bearings are identified by size, design, and performance features.
ISO 492: Covers general tolerances and running accuracy requirements for rolling bearings, including tapered types.
Following ISO standards guarantees that tapered roller bearings meet minimum requirements for durability, load capacity, and safety. It also facilitates global trade by harmonizing technical specifications.
American Bearing Manufacturers Association Specifications
The American Bearing Manufacturers Association (ABMA) provides detailed standards specifically for bearings used in North America. Their specifications for tapered roller bearings include:
ABMA Standard 19.1: Covers design, dimensions, tolerances, and load ratings for tapered roller bearings. It aligns closely with ISO 355 but includes additional regional requirements.
Material and Heat Treatment Guidelines: ABMA standards define acceptable materials and heat treatment processes to ensure bearing strength and wear resistance.
Load Rating Methods: ABMA specifies how dynamic and static load ratings are calculated, helping engineers understand bearing capacity under real-world conditions.
Manufacturers adhering to ABMA standards ensure their tapered roller bearings perform reliably in critical applications such as automotive, aerospace, and heavy industry sectors.
Ensuring Quality and Performance
Compliance with industry standards is just one part of ensuring quality. Additional measures include:
Material Certification: Using high-grade steel alloys with certified chemical and mechanical properties.
Precision Manufacturing: Employing CNC machining, grinding, and heat treatment processes that meet or exceed standard tolerances.
Quality Control Testing: Implementing rigorous inspection protocols, including dimensional checks, hardness tests, and non-destructive evaluation (NDE) techniques.
Performance Testing: Conducting fatigue life, load capacity, and lubrication tests under simulated operating conditions.
Traceability: Maintaining documentation that tracks each bearing from raw material through manufacturing to final shipment.
Together, these practices ensure tapered roller bearings deliver consistent performance, longevity, and safety in demanding applications.
Tip: Always verify that tapered roller bearings conform to relevant ISO and ABMA standards to guarantee compatibility, reliability, and optimal performance in your machinery.
Conclusion
Tapered roller bearings, featuring cone, cup, rollers, and cage, excel in handling radial and axial loads efficiently. Their unique geometry reduces friction and heat, enhancing performance. Future advancements in tapered roller bearings promise increased durability and load capacity. For optimal results, regular maintenance and adherence to industry standards are crucial. Consider chaokunbearing for high-quality tapered roller bearings, offering exceptional reliability and value in demanding applications.
FAQ
Q: What is a tapered roller bearing?
A: A tapered roller bearing consists of four main components: cone, cup, rollers, and cage, designed to handle both radial and axial loads efficiently.
Q: How do tapered roller bearings differ from cylindrical roller bearings?
A: Tapered roller bearings handle both radial and axial loads due to their conical design, unlike cylindrical roller bearings, which primarily support radial loads.
Q: Why are tapered roller bearings used in automotive wheel hubs?
A: Their ability to manage combined radial and axial loads makes tapered roller bearings ideal for automotive wheel hubs, ensuring vehicle stability and smooth operation.
Q: What are the benefits of using tapered roller bearings?
A: Tapered roller bearings offer high load capacity, efficient handling of radial and axial loads, reduced friction, and improved longevity.
Q: How can I maintain my tapered roller bearings?
A: Regular maintenance, including lubrication, inspection, and alignment checks, is crucial for the optimal performance and longevity of tapered roller bearings.
