What is a Shaft Bearing

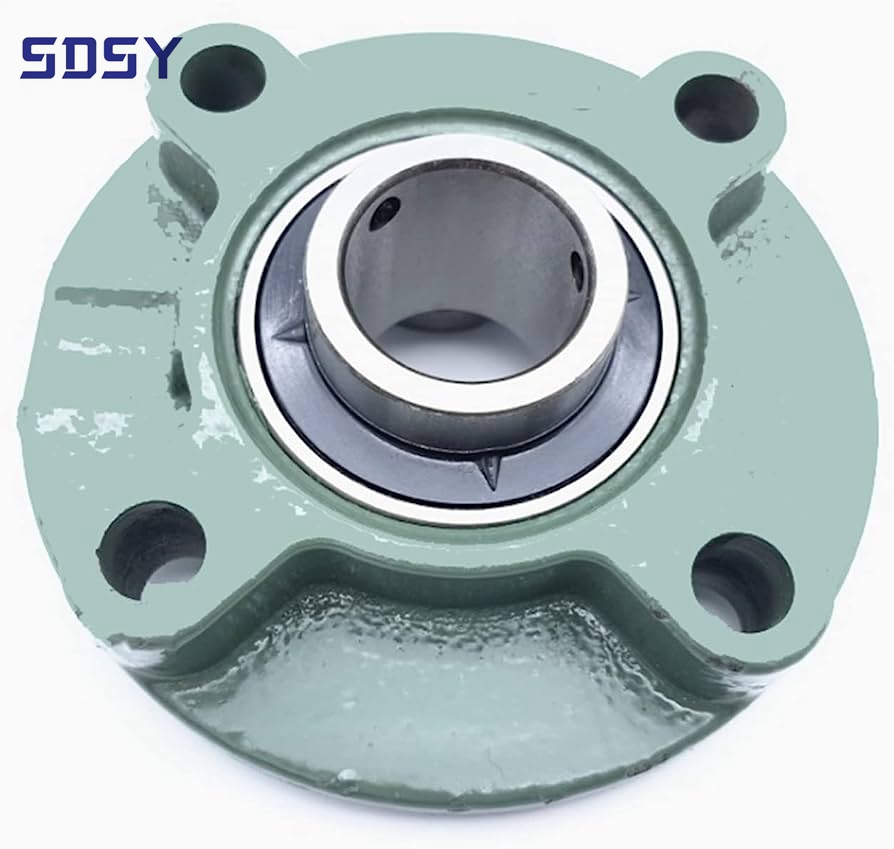

A shaft bearing is a mechanical component designed to support rotating shafts and reduce friction between moving parts. It enables smooth rotational motion while carrying loads and maintaining alignment. Among the most widely used types is the pillow block bearing, which consists of a bearing housed within a mounted block, typically made of cast iron or stainless steel. These units are popular because they simplify installation, enhance stability, and protect the bearing from contaminants.
Pillow block bearings are commonly used in conveyors, fans, pumps, agricultural machinery, and industrial equipment. They come in various types, including ball bearings, roller bearings, and spherical roller bearings, each suited for different load capacities and operational environments. Understanding the role and function of a pillow block bearing is essential before diving into the installation process.
Proper installation of a pillow block bearing not only extends the lifespan of the bearing but also ensures the efficiency and safety of the entire mechanical system. In this guide, we will cover the correct and safe steps for installing bearings on a shaft, with a special focus on pillow block bearing setups.
How to Install Bearings on a Shaft
Installing a pillow block bearing on a shaft requires careful preparation, the right tools, and adherence to safety protocols. A poorly installed bearing can lead to misalignment, excessive vibration, premature wear, and even catastrophic failure. Below, we outline the key considerations and steps for successful installation.
Tools and Materials Needed
Before starting the installation, gather the following tools and materials:
Pillow block bearing unit
Shaft (cleaned and measured)
Wrenches or socket set
Bearing puller or press (if necessary)
Alignment tools (such as a straightedge or laser alignment device)
Torque wrench
Lubricant (grease or oil, as specified by the manufacturer)
Clean rags and cleaning solvent
Personal protective equipment (gloves, safety glasses)
Preparation Steps
Inspect the Bearing and Shaft: Ensure that the pillow block bearing and shaft are free from dirt, rust, or damage. Even small imperfections can affect performance.
Measure the Shaft: Verify that the shaft diameter matches the bore size of the bearing. An improper fit can cause slippage or excessive pressure.
Clean the Components: Use a clean rag and solvent to wipe the shaft and bearing surfaces. Contaminants can cause abrasion and reduce the lifespan of the pillow block bearing.
Lubricate the Bearing: Apply the recommended lubricant to the bearing surfaces. Proper lubrication minimizes friction and heat buildup during operation.
Installation Methods
There are two primary methods for installing a pillow block bearing on a shaft:
1. Mechanical Press Method
This method involves using a hydraulic or mechanical press to fit the bearing onto the shaft. It is ideal for tight-fitting bearings and ensures even pressure distribution.
Place the bearing on the shaft.
Use a press to apply gradual, even force until the bearing is fully seated.
Avoid excessive force, which can damage the bearing or shaft.
2. Thermal Expansion Method
For interference fits, the thermal expansion method can be used. This involves heating the bearing to expand it slightly, allowing it to slide onto the shaft more easily.
Heat the bearing using an induction heater or oil bath (never use an open flame).
Once expanded, quickly place the bearing onto the shaft.
Allow the bearing to cool and contract, creating a tight fit.
Correct and Safe Bearing Installation Steps on a Shaft
Following the correct sequence of steps is crucial for ensuring the pillow block bearing operates smoothly and safely. Below is a detailed, step-by-step guide:
Step 1: Position the Pillow Block Bearing
Place the pillow block bearing near the intended location on the shaft. Ensure that the bearing is oriented correctly, with the lubrication holes accessible and the mounting holes aligned with the base.
Step 2: Align the Bearing
Proper alignment is critical to prevent uneven loading and premature failure. Use alignment tools such as:
Straightedge Method: Place a straightedge along the shaft and bearing housing to check for parallelism.
Laser Alignment: For high-precision applications, use a laser alignment tool to ensure perfect alignment.
Step 3: Mount the Bearing
Secure the pillow block bearing to the base using bolts. Tighten the bolts gradually and in a crisscross pattern to ensure even pressure. Use a torque wrench to achieve the manufacturer’s recommended torque settings.
Step 4: Install the Bearing on the Shaft
Depending on the fit type (slip fit or interference fit), use the appropriate installation method (press or thermal expansion) to seat the bearing on the shaft. Ensure that the bearing is fully seated and square to the shaft.
Step 5: Check for Smooth Rotation
After installation, manually rotate the shaft to ensure smooth movement. There should be no binding, grinding, or excessive resistance.
Step 6: Lubricate the Bearing
Apply the specified lubricant to the bearing. For pillow block bearings, this typically involves greasing the bearing through the lubrication fitting. Over-lubrication can cause overheating, so follow the manufacturer’s guidelines.
Step 7: Final Inspection
Perform a final inspection to ensure:
The bearing is securely mounted.
The shaft rotates smoothly.
There are no signs of misalignment or improper fit.
All bolts are tightened to the correct torque.
Common Installation Mistakes and How to Avoid Them
Even experienced technicians can make mistakes during bearing installation. Below are some common errors and tips for avoiding them:
| Common Mistake | Consequence | How to Avoid |
| Improper Alignment | Uneven wear, vibration, failure | Use alignment tools and double-check before final tightening |
| Incorrect Fit | Slippage or excessive pressure | Measure shaft and bearing bore accurately |
| Over-Lubrication | Overheating, seal damage | Follow manufacturer’s lubrication guidelines |
| Using Excessive Force | Bearing or shaft damage | Use proper tools and apply force gradually |
| Contaminated Components | Abrasion, reduced lifespan | Clean all parts thoroughly before installation |
In Conclusion
Installing a pillow block bearing on a shaft is a critical task that requires attention to detail, proper tools, and adherence to safety protocols. By following the correct steps—preparing the components, aligning the bearing, mounting it securely, and performing a final inspection—you can ensure optimal performance and longevity of the bearing.
Avoiding common mistakes such as misalignment, incorrect fit, and over-lubrication is essential for preventing premature failure. Additionally, staying informed about the latest trends in bearing installation can help you adopt more efficient and sustainable practices.
