Understanding Tapered Roller Bearings
Tapered roller bearings are designed to handle both radial and axial loads, making them versatile for many machinery applications. Their unique feature is the tapered shape of the rollers and raceways, which allows forces to be transmitted efficiently in a specific direction.
Definition and Function
At their core, tapered roller bearings consist of rolling elements shaped like truncated cones. This design means the rollers and raceways form matching tapered surfaces. When the bearing operates, the rollers roll along these surfaces, reducing friction and distributing loads evenly. This geometry enables the bearing to support combined radial (perpendicular to the shaft) and axial (parallel to the shaft) loads simultaneously.
Key Components

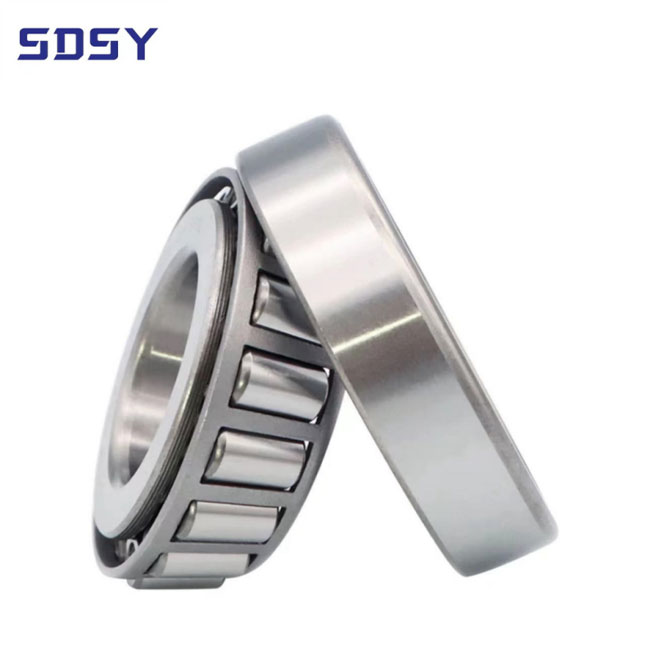

Cone (Inner Ring): This part contains the tapered raceway on which the rollers move. It also includes the rollers and the cage.
Cup (Outer Ring): The cup is the outer ring with a tapered raceway that matches the cone's taper.
Rollers: These are tapered cylinders that roll between the cone and cup. Their shape helps convert axial and radial loads into forces along the roller’s length.
Cage: Also called the retainer, it spaces the rollers evenly and keeps them in place, ensuring smooth rotation and load distribution.
The rollers, cone, and cup tapers are designed so their axes, if extended, meet at a single point on the bearing’s central axis. This alignment reduces sliding friction and wear, promoting longer bearing life.
How They Differ from Other Bearings
Unlike cylindrical or spherical roller bearings, tapered roller bearings can handle both axial and radial loads effectively due to their tapered geometry. Cylindrical roller bearings mainly support radial loads and are less efficient with axial forces. Spherical roller bearings accommodate misalignment but are generally less precise in load handling compared to tapered roller bearings.
The tapered design also allows for adjustment of the bearing clearance during installation, which can optimize performance and reduce wear. This adjustability is less common in other bearing types.
Tapered roller bearings are often used in pairs to balance axial loads in both directions, a feature not typically possible with other bearing types.
Tip: When selecting tapered roller bearings, ensure the cone and cup tapers align perfectly to minimize friction and maximize load capacity in your machinery.
Advantages of Tapered Roller Bearings
Tapered roller bearings excel in handling both radial and axial loads, making them ideal for many machinery applications. Their unique tapered design allows forces to be distributed efficiently along the rollers and raceways, which boosts performance and durability.
Handling Radial and Axial Loads
Unlike many other bearings, tapered roller bearings manage radial loads (forces perpendicular to the shaft) and axial loads (forces parallel to the shaft) simultaneously. The tapered rollers and raceways convert these combined forces into pure rolling motion along the roller length. This means the bearing can support heavy weights and thrust forces at once, providing stability and reducing stress on machinery components.
For example, in automotive wheel hubs, these bearings handle the vehicle’s weight (radial load) and the side forces when turning (axial load), ensuring smooth and safe operation.
Minimizing Friction and Heat
The geometry of tapered roller bearings reduces sliding friction between the rollers and raceways. Since the rollers align perfectly with the tapered surfaces, they roll smoothly rather than slide. This rolling motion minimizes heat generation during operation, which is crucial for maintaining bearing integrity and preventing premature failure.
Less friction means lower energy loss, which improves machinery efficiency and reduces maintenance needs. Proper lubrication further enhances this effect by creating a thin film between contact surfaces, cutting friction and wear even more.
High Load Capacity and Durability
Tapered roller bearings are built to withstand heavy loads. The line contact between the tapered rollers and raceways spreads the load over a larger surface area compared to point contact in ball bearings. This design increases load capacity and reduces stress concentration, leading to longer bearing life.
Moreover, these bearings are durable under harsh conditions, such as shock loads and vibrations, common in industrial machinery and automotive applications. Their robust construction makes them reliable in heavy-duty environments, from construction equipment to aerospace landing gear.
Tip: Always ensure tapered roller bearings are properly lubricated and adjusted during installation to maximize load capacity and minimize friction, extending their service life in your machinery.
Disadvantages and Limitations
While tapered roller bearings offer many advantages, understanding their potential drawbacks is essential for selecting the right bearing type for your machinery.
Potential for Misalignment
Tapered roller bearings require precise alignment during installation and operation. Their design depends on the axes of the rollers and raceways meeting at a single point. If misalignment occurs, it causes uneven load distribution, increased friction, and accelerated wear. This damage can be irreversible, leading to premature bearing failure and costly downtime.
Compared to spherical roller bearings, which tolerate some degree of misalignment due to their self-aligning feature, tapered roller bearings are less forgiving. For applications where shaft deflection or mounting inaccuracies are common, spherical bearings may be a better choice.
Speed Limitations
Tapered roller bearings typically have lower maximum speed capabilities than some other bearing types. The contact between the tapered rollers and raceways generates more friction and heat at high speeds. Excessive heat can degrade lubrication, increase wear, and reduce bearing life.
While proper lubrication and cooling can help mitigate heat buildup, tapered roller bearings are generally best suited for moderate-speed applications. For very high-speed machinery, angular contact ball bearings or cylindrical roller bearings might be more appropriate.
Comparison with Spherical Bearings
Spherical roller bearings excel in handling heavy radial loads and axial loads in both directions, along with the ability to accommodate shaft misalignment. They have a barrel-shaped roller profile, which allows the bearing to self-align and adjust to shaft deflections or mounting errors.
In contrast, tapered roller bearings offer higher precision in load handling and better axial load capacity but lack the self-aligning feature. This makes them less ideal where misalignment or shaft deflection is significant.
Additionally, spherical roller bearings tend to generate slightly more friction than tapered roller bearings under aligned conditions, but their tolerance for misalignment often outweighs this drawback in challenging environments.
Tip: Always assess alignment conditions and operating speeds before choosing tapered roller bearings; when misalignment or very high speeds are expected, consider spherical or other bearing types to avoid premature failure.
Applications of Tapered Roller Bearings
Tapered roller bearings play a crucial role across several industries due to their ability to handle both radial and axial loads efficiently. Their unique design suits demanding environments where durability, load capacity, and precision are essential.
Automotive Industry: Wheel Hubs and Transmissions
In the automotive sector, tapered roller bearings are most commonly found in wheel hubs and transmissions. They support the vehicle’s weight (radial load) and resist forces generated during turns or acceleration (axial load). This dual-load handling ensures smooth rotation of wheels and reliable power transmission. For example, in wheel hubs, these bearings maintain alignment and reduce friction, enhancing safety and performance. In transmissions, they help manage the complex forces from gear interactions, ensuring efficient power transfer and longer component life.
Aerospace: Landing Gear Assemblies
Landing gear assemblies in aircraft face intense stresses during takeoff, landing, and taxiing. Tapered roller bearings are ideal here because they can handle combined loads and absorb shocks effectively. Their robust construction and precise load distribution help maintain the structural integrity of landing gear components. This reliability is critical for safety and performance in aerospace applications, where failure is not an option.
Industrial Machinery: Gearboxes and Heavy Equipment
Industrial machines often operate under heavy loads and harsh conditions. Gearboxes, a key component in many machines, experience both radial and axial forces as gears mesh and transfer power. Tapered roller bearings excel in these settings, providing durability and smooth operation. Heavy equipment, such as construction machinery and mining vehicles, also rely on these bearings to withstand vibrations, shocks, and continuous heavy loading. Their ability to minimize friction and heat generation reduces maintenance needs and extends service life.
Tip: When selecting tapered roller bearings for your machinery, consider the specific load types and operating conditions in your application to ensure optimal performance and longevity.
Installation and Maintenance
Proper installation and maintenance of tapered roller bearings are crucial to maximize their performance and lifespan. These bearings require careful attention during setup and ongoing care to avoid common issues such as misalignment, improper clearance, and lubrication failures.
Proper Installation Techniques
Installing tapered roller bearings correctly begins with clean, debris-free components. Dirt or contaminants can cause premature wear or damage. Use clean gloves and tools to handle bearings, and ensure mounting surfaces are smooth and free of burrs.
When mounting, avoid applying force directly to the rollers or cage. Instead, press the bearing onto the shaft or into the housing using the appropriate tools, such as a hydraulic press or bearing driver. This prevents damage to the rollers and raceways.
Align the cone and cup carefully so their tapered surfaces match perfectly. Misalignment leads to uneven load distribution and increased friction, shortening bearing life. Since tapered roller bearings can be mounted in pairs, ensure the pair is installed properly to balance axial loads in both directions.
Adjusting Bearing Clearance
One of the advantages of tapered roller bearings is the ability to adjust clearance during installation. Clearance refers to the small internal space between the bearing components that allows for thermal expansion and proper lubrication.
Adjust clearance by controlling the axial position of the bearing cone relative to the cup. This is often done by tightening a locknut or adjusting a spacer. The goal is to achieve the manufacturer’s recommended preload or endplay.
Preload: Slight axial force applied to eliminate clearance, increasing rigidity and reducing vibration.
Endplay: Small clearance allowing slight axial movement, reducing heat generation in some applications.
Too much preload causes excessive friction and heat, while too little leads to noise and premature wear. Use a dial indicator or torque wrench to measure and set clearance accurately based on specifications.
Maintenance Tips to Extend Lifespan
Regular maintenance keeps tapered roller bearings running smoothly and prevents unexpected failures.
Lubrication: Proper lubrication reduces friction and heat. Use the recommended type and amount of grease or oil. Re-lubricate at intervals based on operating conditions and speed.
Cleaning: Remove bearings periodically for inspection and cleaning if operating in dirty or dusty environments.
Inspection: Check for signs of wear, corrosion, or damage. Look for unusual noise, vibration, or temperature increases during operation.
Seals: Maintain or replace seals to prevent contaminants from entering the bearing and degrading lubricant quality.
Alignment Checks: Periodically verify shaft and housing alignment to prevent uneven loading.
Following these maintenance practices can significantly extend the life of tapered roller bearings and improve machinery uptime.
Tip: Always use precise tools and follow manufacturer guidelines when installing tapered roller bearings to ensure correct clearance and alignment, preventing costly downtime and bearing failure.
Comparing Tapered Roller Bearings with Cylindrical Roller Bearings
When choosing bearings for machinery, understanding the differences between tapered roller bearings and cylindrical roller bearings is crucial. Both types support radial loads, but their structural designs, load capacities, and friction characteristics vary significantly.
Structural Differences
Tapered Roller Bearings: These bearings consist of four main parts—the cone (inner ring), cup (outer ring), tapered rollers, and a cage. The rollers and raceways have a conical shape, meaning their axes converge at a common point. This geometry allows the bearing to handle both radial and axial loads simultaneously.
Cylindrical Roller Bearings: These bearings feature cylindrical rollers that run between parallel raceways. The rollers are straight and do not taper, so the bearing mainly supports radial loads. The cage keeps the rollers evenly spaced, but the design does not accommodate significant axial forces.
Load Capacity and Handling
Radial Loads: Cylindrical roller bearings excel at supporting heavy radial loads due to their large contact area between rollers and raceways. They are often chosen where radial forces dominate.
Axial Loads: Tapered roller bearings outperform cylindrical ones in managing axial loads. Their tapered design converts axial forces into radial loads along the roller length, enabling them to handle thrust forces effectively.
Combined Loads: Tapered roller bearings are ideal for applications where both radial and axial loads occur together, such as automotive wheel hubs or gearboxes. Cylindrical roller bearings are less suited for such combined loading.
Friction and Heat Generation
Cylindrical Roller Bearings: Generally produce less friction and heat under pure radial loads because the rollers roll straight without sliding. This makes them efficient for high-speed applications where axial loads are minimal.
Tapered Roller Bearings: Slightly higher friction arises due to the sliding component between the tapered rollers and raceways. This friction generates more heat, especially at high speeds or under heavy axial loads. Proper lubrication and clearance adjustment help mitigate this.
Additional Considerations
Adjustability: Tapered roller bearings allow clearance adjustment during installation, optimizing performance and preload. Cylindrical roller bearings typically have fixed clearances.
Misalignment Tolerance: Cylindrical roller bearings tolerate minor misalignment better than tapered roller bearings, which require precise alignment to avoid uneven loading and premature wear.
Applications: Cylindrical roller bearings suit electric motors, machine tools, and conveyors where radial loads dominate. Tapered roller bearings are preferred in automotive, aerospace, and heavy machinery applications requiring combined load handling.
Tip: Choose tapered roller bearings for applications with significant axial loads or combined loading, and opt for cylindrical roller bearings when primarily radial loads and high speeds are involved to enhance machinery efficiency.
Conclusion
Tapered roller bearings are essential for managing both radial and axial loads, enhancing machinery efficiency. Their unique design ensures durability and precision, making them ideal for various applications like automotive and aerospace. These bearings reduce friction and heat, improving performance and longevity. For optimal results, proper installation and maintenance are crucial. Consider choosing chaokunbearing for high-quality tapered roller bearings, offering unmatched value and reliability in demanding environments. Their products promise exceptional load handling and durability, ensuring machinery performs at its best.
FAQ
Q: What is a tapered roller bearing?
A: A tapered roller bearing is a type of bearing designed to handle both radial and axial loads efficiently. It features tapered rollers and raceways that distribute loads evenly, reducing friction and wear.
Q: How are tapered roller bearings used in machinery?
A: Tapered roller bearings are commonly used in automotive wheel hubs, transmissions, aerospace landing gear, and industrial machinery due to their ability to manage combined radial and axial loads effectively.
Q: Why choose tapered roller bearings over spherical roller bearings?
A: Tapered roller bearings offer higher precision in load handling and better axial load capacity, while spherical roller bearings accommodate misalignment but are less precise in load handling.
Q: What are the benefits of using tapered roller bearings?
A: Benefits include high load capacity, durability, reduced friction and heat generation, and the ability to adjust clearance during installation for optimized performance.
Q: How do tapered roller bearings compare to cylindrical roller bearings?
A: Tapered roller bearings handle both radial and axial loads, while cylindrical roller bearings mainly support radial loads. Tapered bearings offer adjustability and precision, whereas cylindrical bearings excel in high-speed applications.
