Cylindrical roller bearings are critical components in many industrial and mechanical systems, known for their high radial load capacity, efficiency, and ability to perform under harsh conditions. However, choosing the right cylindrical roller bearing for a specific application is not as simple as picking one off a shelf. A poor selection can lead to frequent breakdowns, reduced performance, and unexpected downtime. This comprehensive guide will walk you through everything you need to know about choosing the right cylindrical roller bearing, including types, load requirements, clearance, cage material, and frequently asked questions.
What Is a Cylindrical Roller Bearing?

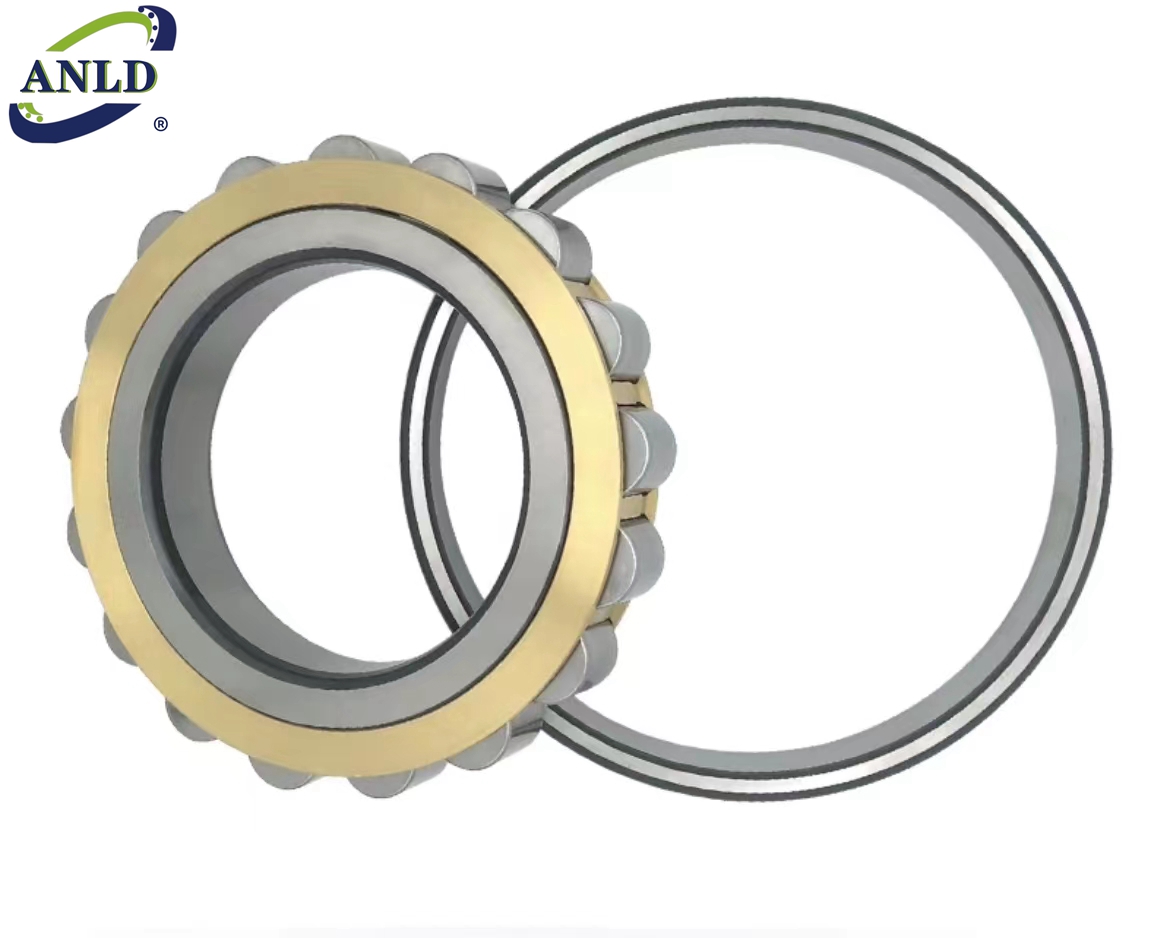

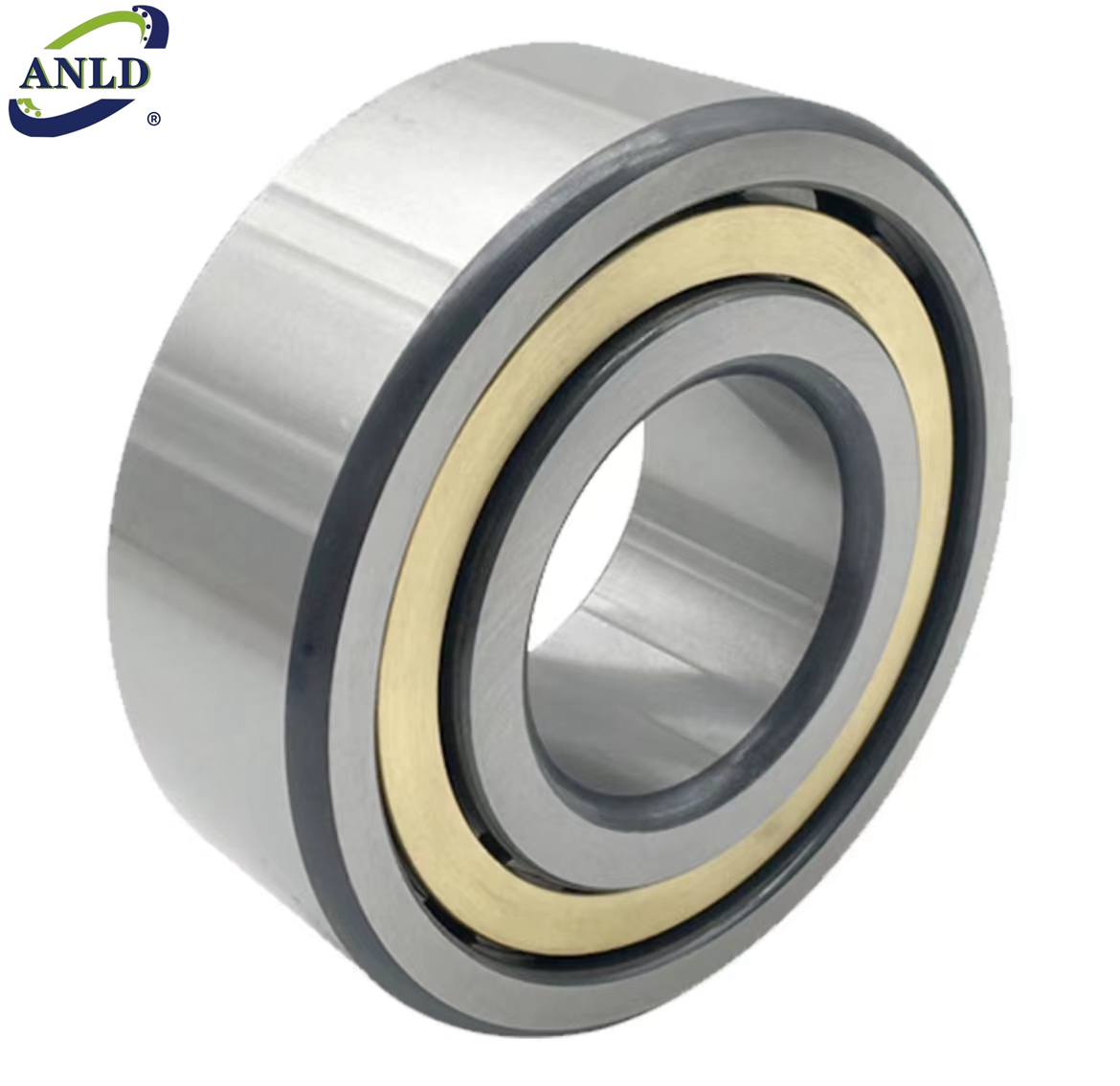

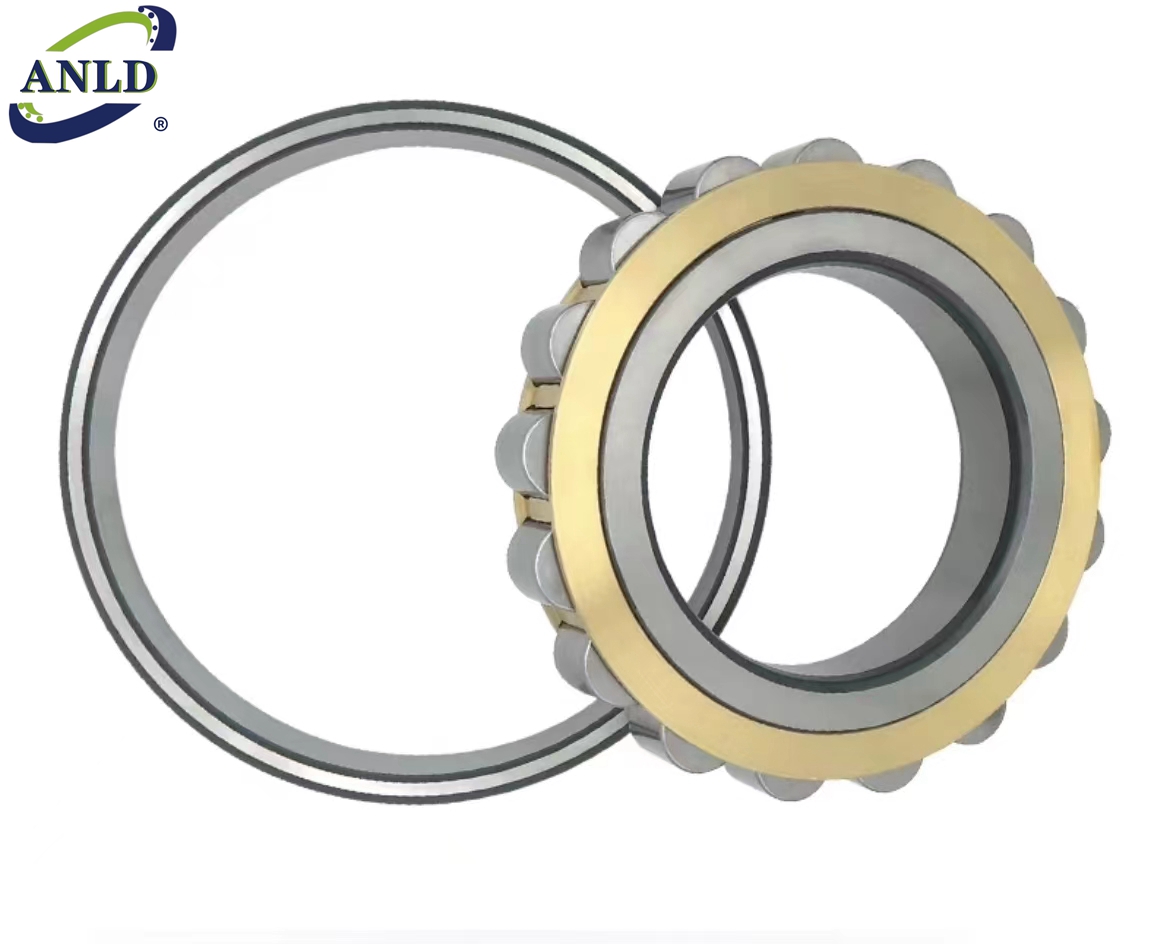

Cylindrical roller bearings are mechanical devices designed to reduce friction between moving parts in machinery while supporting heavy radial loads. These bearings feature cylindrical-shaped rollers that are longer than their diameter, arranged in parallel to the bearing axis. This design enables them to carry larger radial loads compared to ball bearings. Unlike tapered or spherical roller bearings, cylindrical types can tolerate some axial load only when specifically designed with features such as ribs on inner and/or outer rings.
There are several configurations of cylindrical roller bearings, including single-row and multi-row designs, which determine load capacity and speed capabilities. The selection process must start with understanding the fundamental design of the bearing and how it suits your equipment’s function. A bearing used in a high-speed electric motor will differ vastly from one used in heavy mining equipment. Therefore, knowing the basics of how cylindrical roller bearings work will provide a solid foundation for making informed decisions.
Key Factors to Consider When Choosing a Cylindrical Roller Bearing
Load Capacity and Direction
The first and most important consideration is the type and magnitude of the load the bearing will support. Cylindrical roller bearings are excellent at handling radial loads—those acting perpendicular to the shaft. However, most standard designs are not suited for axial (thrust) loads unless modified. For example, the NJ and NUP designs can handle limited axial loads in one or both directions.
If your machinery is subject to combined loads (radial + axial), then selecting a bearing type that can accommodate both is essential. Multi-row cylindrical roller bearings are used in heavy-duty equipment, as they can bear high radial loads and offer greater stiffness.
Understanding your application’s load direction and magnitude is essential. Overloading a bearing or using it in the wrong load direction can lead to premature failure, excess vibration, and ultimately, costly repairs.
Speed Requirements
Speed is another critical parameter. Cylindrical roller bearings vary widely in their ability to operate at high speeds. Generally, single-row bearings with a cage (separator) operate at higher speeds than full complement (without cage) designs because they have less friction and better lubrication flow.
If your application involves high-speed rotation, look for a bearing with precision finishing, optimized cage design, and minimal radial clearance. Conversely, in low-speed, high-load applications such as conveyors or heavy rollers, full complement bearings may be more appropriate due to their increased load capacity.
Always consult the manufacturer’s specification sheets for limiting speed values and ensure you choose a bearing that exceeds your operational needs by a reasonable margin.
Understanding Clearance and Tolerance
Clearance refers to the internal space between the rolling elements and the raceways. It significantly affects the bearing’s operational behavior, especially in relation to temperature and load.
C3 Clearance is commonly used in applications where temperature rise is expected due to high speed or load.
C4 or greater may be necessary in extreme conditions.
Standard clearance is best for applications with stable, low-temperature environments.
Incorrect clearance can lead to noise, vibration, and uneven wear. In high-precision applications, like robotics or aerospace, tight tolerances and controlled clearance levels are crucial. In contrast, for agricultural or construction machinery where shock loads are common, a looser clearance may prevent seizure during thermal expansion.
The correct selection of internal clearance can also influence preload settings and shaft/housing fit tolerances, which directly impact the bearing's lifespan and performance.
Cage Material and Design Options
The cage in a cylindrical roller bearing separates the rollers and ensures their even spacing for reduced friction and heat generation. Different materials offer different benefits:
| Cage Material | Characteristics | Best Use Cases |
| Brass | Durable, corrosion-resistant | Heavy-duty, high-speed applications |
| Steel | Economical, high strength | General-purpose applications |
| Polyamide (Nylon) | Lightweight, low-noise | High-speed, low-load conditions |
Choosing the wrong cage material can result in early failure due to wear or deformation, particularly in high-heat environments. It’s vital to assess whether the application requires higher chemical resistance (brass), cost-effectiveness (steel), or better vibration damping (polyamide).
The cage design (pin-type, window-type, etc.) also affects bearing performance in terms of load distribution and oil flow. Some designs promote better lubrication, which is essential in applications with high speeds or limited maintenance access.
Environmental and Operational Conditions
Environmental factors like dust, moisture, temperature extremes, and corrosive chemicals can significantly impact bearing life. Sealed or shielded cylindrical roller bearings offer added protection in dirty or wet environments. If your operation involves chemical exposure or extreme heat, choosing bearings with specialized coatings or stainless steel components may be necessary.
Furthermore, consider the mounting and dismounting process. Split cylindrical roller bearings, for instance, are ideal for applications where frequent maintenance is required, or when the bearing location is difficult to access.
Applications in steel mills, pulp and paper processing, or wind turbines each present unique challenges, so understanding the operational setting will guide you to the most durable and reliable solution.
Conclusion
Choosing the right cylindrical roller bearing is a balance between performance, durability, and cost. It's not just about the bearing itself but how it interacts with your system. Always take a comprehensive view—consider load, speed, clearance, cage design, and environmental factors. Collaborate with a bearing specialist or use bearing selection tools provided by manufacturers for accurate sizing and configuration.
Proper bearing selection can mean the difference between seamless operation and frequent, expensive breakdowns. Don’t cut corners—invest in understanding your application’s requirements thoroughly.
