Cylindrical roller bearings are essential components in industrial machinery, designed to support high radial loads and moderate thrust loads. Known for their superior load-carrying capacity and low friction performance, cylindrical roller bearings play a crucial role in various applications, including electric motors, gearboxes, machine tools, and pumps. In this guide, we’ll delve into the three primary types of cylindrical roller bearings, their structural characteristics, applications, and how to choose the right one based on your specific needs.
Understanding Cylindrical Roller Bearings: An Overview
Before identifying the three main types, it’s vital to understand the basic design of cylindrical roller bearings. These bearings are characterized by cylindrical-shaped rollers that are arranged in linear contact with the raceways. This structural design allows them to carry more load than ball bearings of similar size, especially in applications involving heavy radial forces.

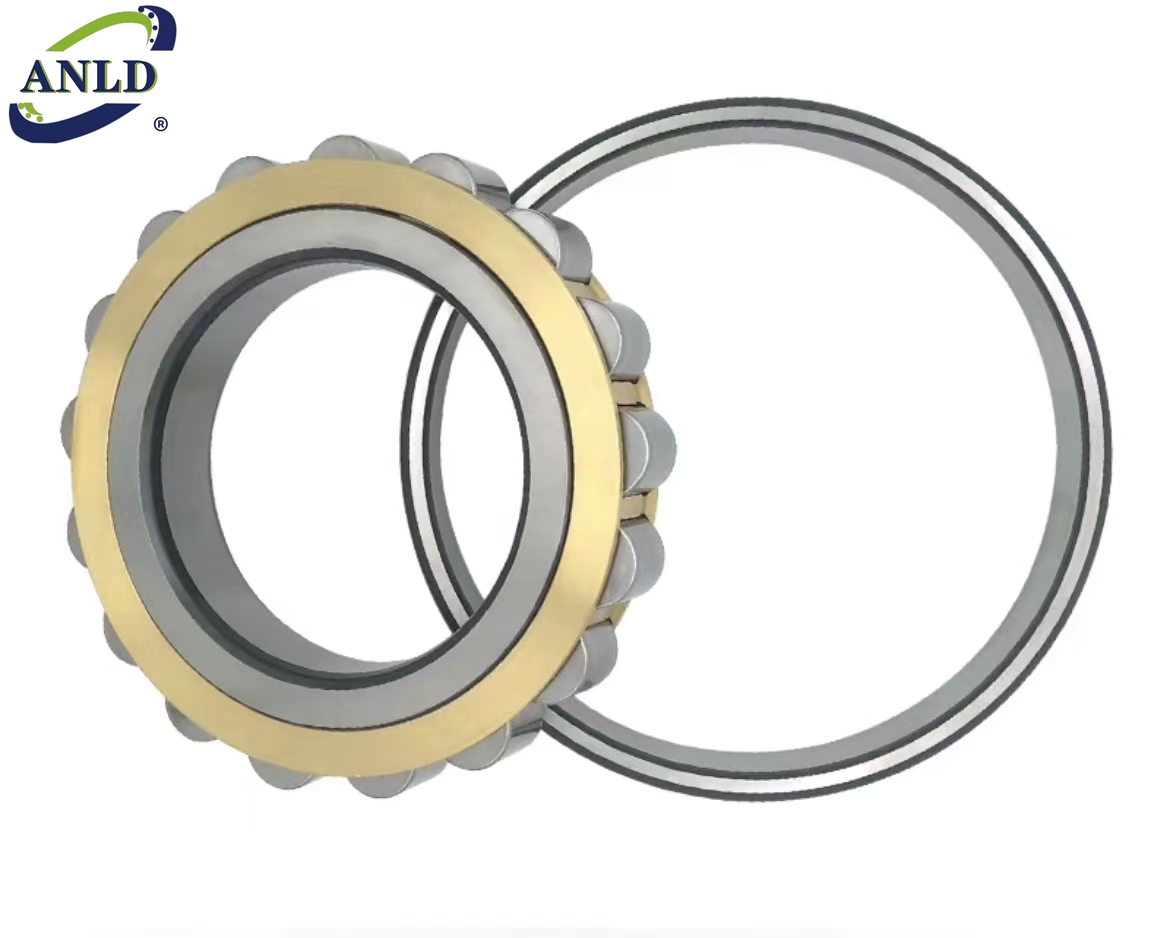

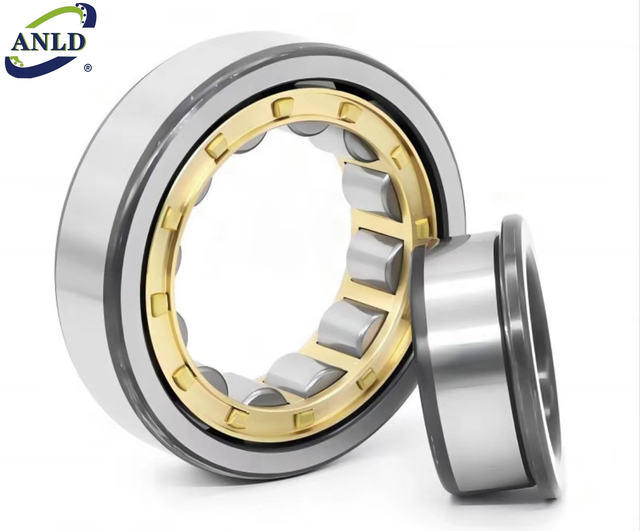

Unlike other bearings, cylindrical roller bearings can be separated—meaning the inner and outer rings can be installed independently. This feature makes them easier to mount and dismount, particularly in machines where space and serviceability are critical.
Type 1: Single-Row Cylindrical Roller Bearing
Features and Structure
The single-row cylindrical roller bearing is the most commonly used type. It comprises one row of cylindrical rollers housed between an inner and outer ring. Depending on the cage design and flange arrangement, these bearings are further divided into subtypes such as NU, N, NJ, and NUP.
| Subtype | Inner Ring Flange | Outer Ring Flange | Axial Load Capability |
| NU | No Flanges | Two Flanges | None |
| N | Two Flanges | No Flanges | None |
| NJ | Two Flanges | One Flange | One-directional |
| NUP | Two Flanges | One Fixed & One Loose Flange | Bidirectional |
Applications
These bearings are ideal for high-speed, high-radial-load conditions. Common applications include electric motors, compressors, pumps, and industrial gearboxes. Depending on the subtype, single-row cylindrical roller bearings may allow limited axial displacement or fully support axial loads in one or both directions.
Type 2: Double-Row Cylindrical Roller Bearing
Enhanced Load Capacity
The double-row cylindrical roller bearing is an advancement over its single-row counterpart. It has two rows of cylindrical rollers, which significantly increases the radial load capacity and stiffness. This makes them suitable for heavier machinery and high-rigidity applications such as rolling mills, large electric motors, and heavy-duty gearboxes.
Benefits
High radial load capacity: The dual rows distribute the load more evenly, reducing wear and improving durability.
High precision: Common in applications where precise shaft alignment is critical.
Axial displacement accommodation: Certain configurations allow limited axial movement, ideal for thermal expansion scenarios.
Double-row bearings often come in the NN and NNU series, where:
NN-type: Inner ring with flanges, outer ring without flanges.
NNU-type: Outer ring with flanges, inner ring without flanges.
Considerations
Despite the advantages, double-row cylindrical roller bearings are typically more expensive and require more space. Therefore, they are best suited for applications where the load and performance justifies the added cost and size.
Type 3: Full-Complement Cylindrical Roller Bearing
Maximized Roller Count
The full-complement cylindrical roller bearing is unique because it contains the maximum possible number of rollers, eliminating the cage found in traditional designs. This configuration dramatically increases the load-carrying capacity, especially under shock or intermittent loads.
Strengths and Weaknesses
Advantages:
Higher radial load capacity due to more contact points.
Ideal for low-speed or oscillating applications.
Compact design despite higher load capabilities.
Disadvantages:
Use Cases
These bearings are especially useful in cranes, railways, wind turbines, and heavy construction machinery where space is limited, and extreme loads are present. However, their use is generally restricted to low to moderate rotational speeds.
Comparing the Three Types: Summary Table
Here’s a quick reference to understand the main differences between the three cylindrical roller bearing types:
| Type | Load Capacity | Speed Suitability | Axial Load Support | Application Focus |
| Single-Row | Moderate | High | Limited/Bidirectional | Motors, Pumps, Gearboxes |
| Double-Row | High | Moderate-High | Limited | Mills, Heavy Machinery, Generators |
| Full-Complement | Very High | Low | Minimal | Cranes, Railways, Wind Turbines |
Choosing the Right Cylindrical Roller Bearing for Your Application
When selecting a cylindrical roller bearing, consider the following:
Load Requirements: For moderate loads, a single-row bearing may suffice. For higher loads, especially in compact spaces, opt for a full-complement or double-row bearing.
Speed Considerations: If your machinery operates at high speeds, a caged single or double-row bearing is preferable.
Axial Movement: If axial displacement is expected, choose types that accommodate this movement (e.g., NU or N series).
Service Environment: For environments involving vibration or impact, full-complement designs provide superior durability.
Always consult engineering charts and manufacturer specifications to ensure proper fitment and performance.
Conclusion
Cylindrical roller bearings are fundamental in engineering due to their high load capacity, adaptability, and reliability. By understanding the three main types—single-row, double-row, and full-complement—you can make more informed decisions for your machinery or project. Each type has its advantages and application niches, making them indispensable across industries. Whether you prioritize load, speed, or space, there’s a cylindrical roller bearing that fits the task.
